Camshaft Alignment Lock Timing Tool For BMW M52TU/M54/M56 Double Vanos Master
Camshaft Alignment Lock Timing Tool For BMW M52TU/M54/M56 Double Vanos Master
You may also like
Features:
Our BMW M52,M52TU, M54, M56 complete timing special tools. It is a perfect tool to perform camshaft timing on BMW M52TU,M54,M56 engines.
This tool set is made of heavy duty 45# steel and lightweight 6061 aluminum, which will be durable and portable.
Moreover, there is a carry case for this tool set, so you can storage and transport them conveniently.
Feature
Designed to Properly Align and Lock the Camshaft in TDC Position
Made of heavy duty steel and lightweight aluminum, durable and portable
Mater tools designed to perform camshaft + VANOS timing on BMW M52, M52TU, M54, M56 engine.
Tool kit including all the necessary to timing on BMW M52, M52TU, M54, M56 engine
With a red carry case for simply storage and transporting
Specifications
Material: 45# steel and 6061 aluminum

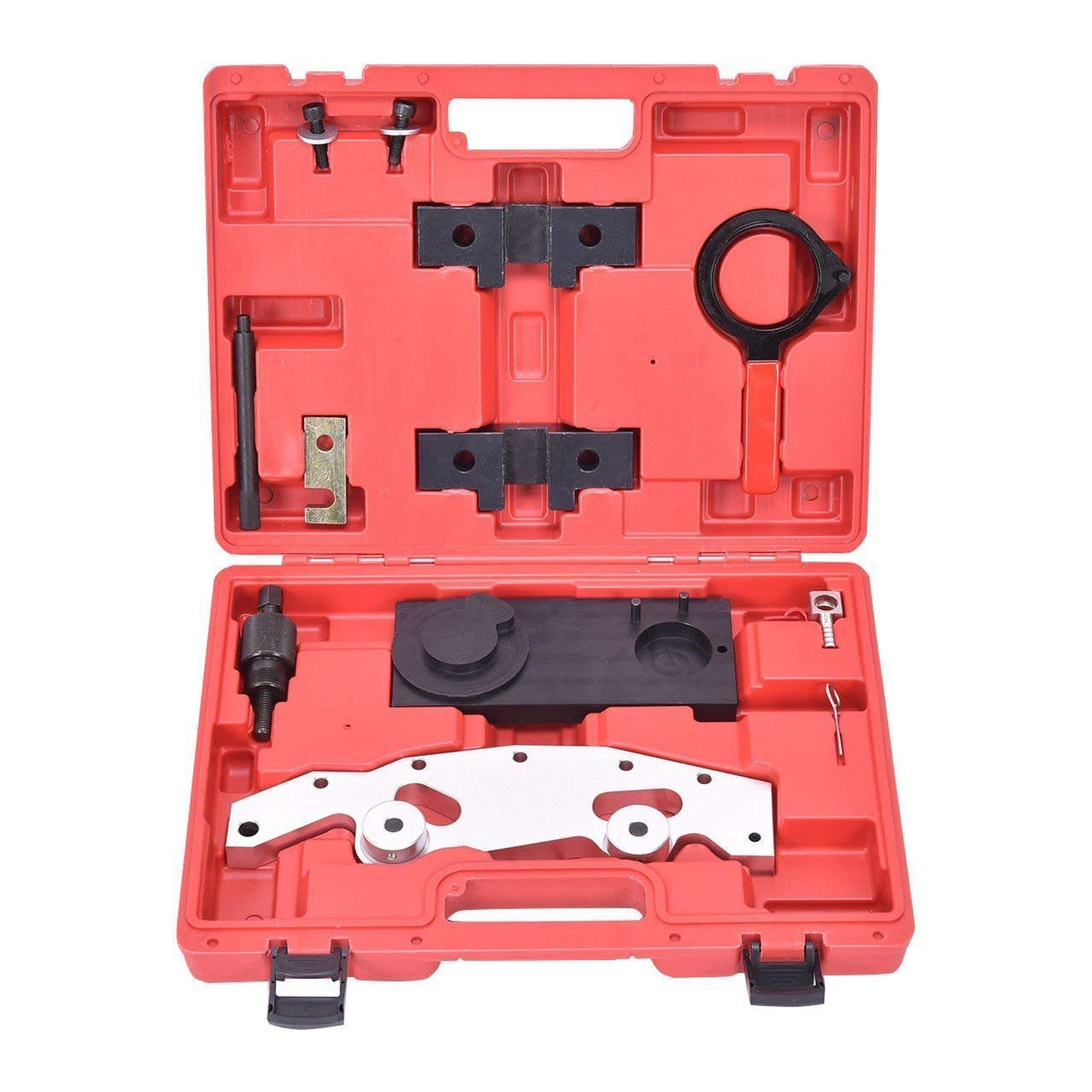

Package include:
Alignment Jig
Sprocket Assembly Jig
Rigid Chain Tensioner
Chain Tensioner Lock Pin
VANOS Compressed Air Connection
Camshaft Locking Fixture
Top Dead Center Pin
VANOS Turning Wrench
Application for Engines: M42, M44, M50, M52, M52TU, M54, M56, S50US, S52US.
Application:
Double VANOS Timing Kit Engine Tools needed for assembly and proper timing the Vanos unit found on 1998 & newer 6 cyl engines.
Included:
Alignment Jig: Adjusting plate for setting valve timing on engine with double Vanos.
Sprocket Assembly Jig: Use for preassembling secondary chain sprockets with chain on camshafts.
Rigid Chain Tensioner: Use to tension primary chain
Chain Tensioner Lock Pin: Locks chain tensioner during timing
VANOS Compressed Air Connection: Use to pressurize the single and double Vanos unit when checking or removing and replacing.
Application:
M52TUB25:
1997-2001 E46 323i/323Ci/323ti (M52T)
1998-2001 E39 523i (M52TU)
1998-2001 E36/7 Z3 (M52TU)
M54B25:
2001-2002 E36/7 Z3 2.5i
2001-2005 E46 325i/325xi
2001-2006 E46 325Ci
2001-2004 E46 325ti
2001-2004 E39 525i
2003-2004 E60/E61 525i/525xi
2004-2006 E83 X3 2.5i
2004-2006 E85 Z4 2.5i
M52TUB28:
1997-2001 E46 328i/328Ci (M52TU)
1997-2001 E36/7 Z3 2.8 (M52B28/Z3)
1998-2001 E39 528i (M52TU)
1998-2001 E38 728i (M52TU)
M54B22:
2001-2003 E46 320i/320Ci
2001-2003 E39 520i
2001-2002 E36 Z3 2.2i
2003-2005 E85 Z4 2.2i
2003-2005 E60/E61 520i
M54B30:
2001-2005 E46 330i/330xi
2001-2006 E46 330Ci
2001-2003 E39 530i
2001-2002 E36 Z3 3.0i
2003-2005 BMW E60 530i
2003-2006 E85 Z4 3.0i
2004-2006 E83 X3 3.0i
2001-2006 E53 X5 3.0i
CAMSHAFT LOCATING FIXTURE Aligns and holds the camshaft in position when assembling cylinder head and replacing timing chain.
Engines: M42, M44, M50, M52, M52TU, M54, M56, S50US, S52US.
TOP DEAD CENTER PIN: Use to lock the flywheel at Top Dead Center when removing or replacing the camshafts or VANOS assemblies.
Engines: M42, M43, M44, M50, M52, M52TU, M54, M56, M60, M62, M70, M73, S50B30, S50B32, S54, S62.
VANOS TURNING WRENCH: Use to adjust VANOS position on single VANOS engines when removing or installing. Engines: M50, M52, S50US, S52US.
Application Detail:
M42B18
* 1989-1991 E30 318iS/U.S. model 318i
* 1992-1996 E36 318i/318iS/318ti
M54B22
* 2001-2003 E46 320i/320Ci
* 2001-2003 E39 520i
* 2001-2002 E36 Z3 2.2i
* 2003-2005 E85 Z4 2.2i
* 2003-2005 E60/E61 520i
M44B19
* 1996-2000 E36 318iS/318ti
* 1996-2001 Z3 1.9 M50B20
* 1990-1995 E36 320i
* 1989-1995 E34 520i
M54B25
* 2001-2002 E36/7 Z3 2.5i
* 2001-2005 E46 325i/325xi
* 2001-2006 E46 325Ci
* 2001-2004 E46 325ti
* 2001-2004 E39 525i
* 2003-2004 E60/E61 525i/525xi
* 2004-2006 E83 X3 2.5i
* 2004-2006 E85 Z4 2.5i
M50B24
* 1993-1997 E36 3-Series (Thai specification)
* 1993-1997 E34 5-Series (Thai specification)
M50B25
* 1991-1995 E36 325i/325is
* 1992-1995 E34 525i/525ix
M54B30
* 2001-2005 E46 330i/330xi
* 2001-2006 E46 330Ci
* 2001-2003 E39 530i
* 2001-2002 E36 Z3 3.0i
* 2003-2005 BMW E60 530i
* 2003-2006 E85 Z4 3.0i
* 2004-2006 E83 X3 3.0i
* 2001-2006 E53 X5 3.0i
M50B25
* 1991-1995 E36 325i/325is
* 1992-1995 E34 525i/525ix
M52B28
* 1996-2001 [BMW e36 and e46 328i]
* 1996-2000 [BMW e39 528i]
S50B30US
*1995 E36 M3
****DOES NOT HAVE INSTRUCTION & MANUAL
•Our products are professional auto tools. You should only purchase the tools if you are familiar with how to fix cars.
•Proper use of the tools are important to prevent from any unnecessary injuries.
•Heavy duty moulded storage case (may get dent or crack during shipping)
•Case color may vary.
