Function: The cylinder compression tester kit is used to quickly and accurately test the cylinder

pressure of gasoline engines. Meter readings can help diagnose the following problems: stuck

valve, carbon deposits, cracked cylinder head or defective main gasket, poor or worn piston ring

installation, burned or damaged piston.

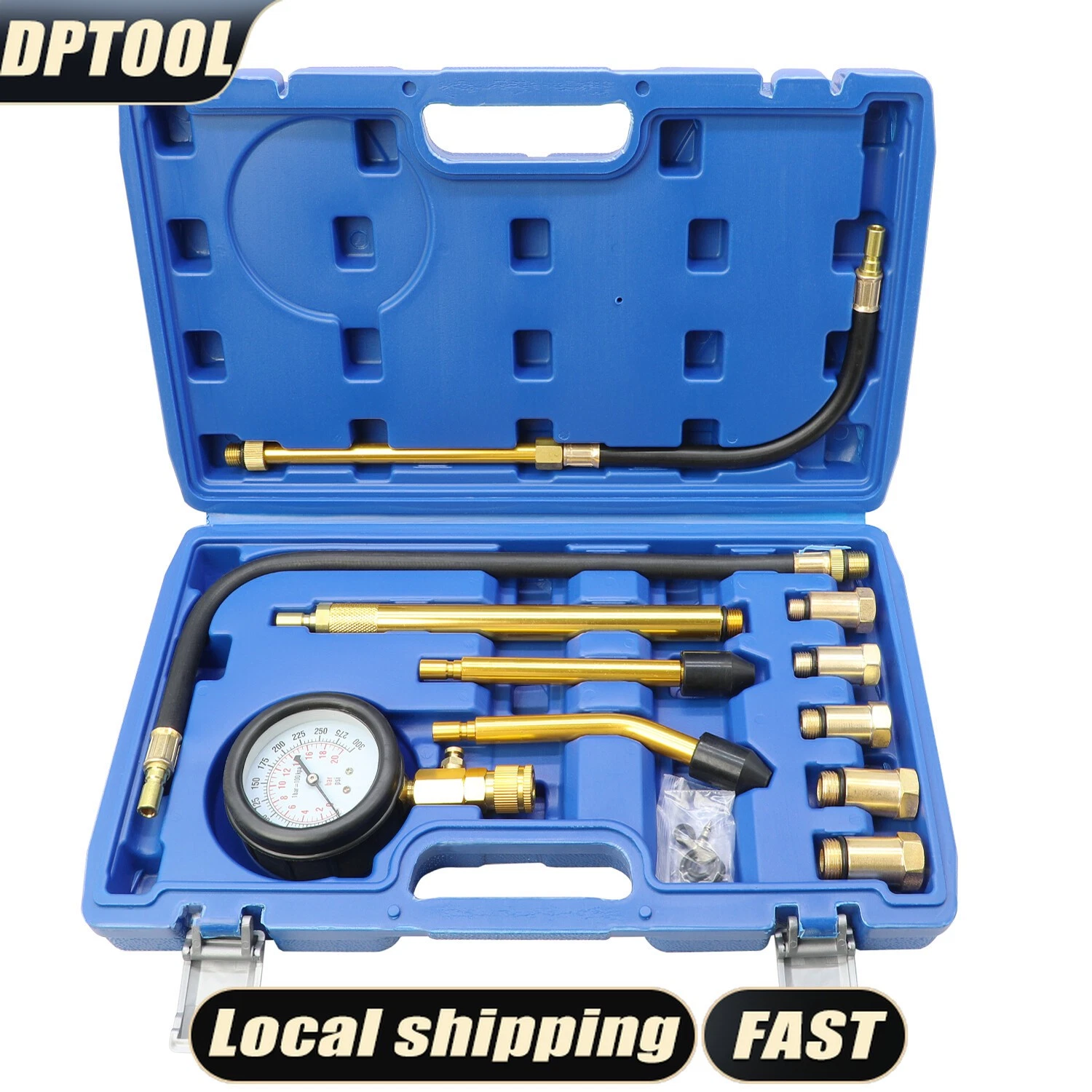

Packing: Including 10 connection adapters --- 11-in-1 engine tester gauge kit including 1 piece

spring buckle gauge; 5-piece brass adapter M10, M12, M14, M16, M18, widely used; a 200mm

metal Extension rod connector, two 50mm metal aluminum rod straight and bent rod, an

extension rod hose with M12*1.25 thread.

Application: Gasoline engine cylinder --- equipped with different sizes of rotating and push-in

adapters, widely used in most types of gasoline gasoline gas engine cylinders and deep spark

plugs, common in motorcycles, lawn mowers, cars, trucks, ATV and many more. Not suitable

for diesel engines.

Stable quality tester: Maximum 300PSI or 20BAR dual pressure device, with easy-to-read

large dial, acrylic glass meter cover with scratch-resistant coating and rubber protective

cover with excellent shock absorption performance. The built-in one-way valve with pressure

holding function ensures that the pressure gauge obtains the maximum pressure at the spark

plug during the compression process.
