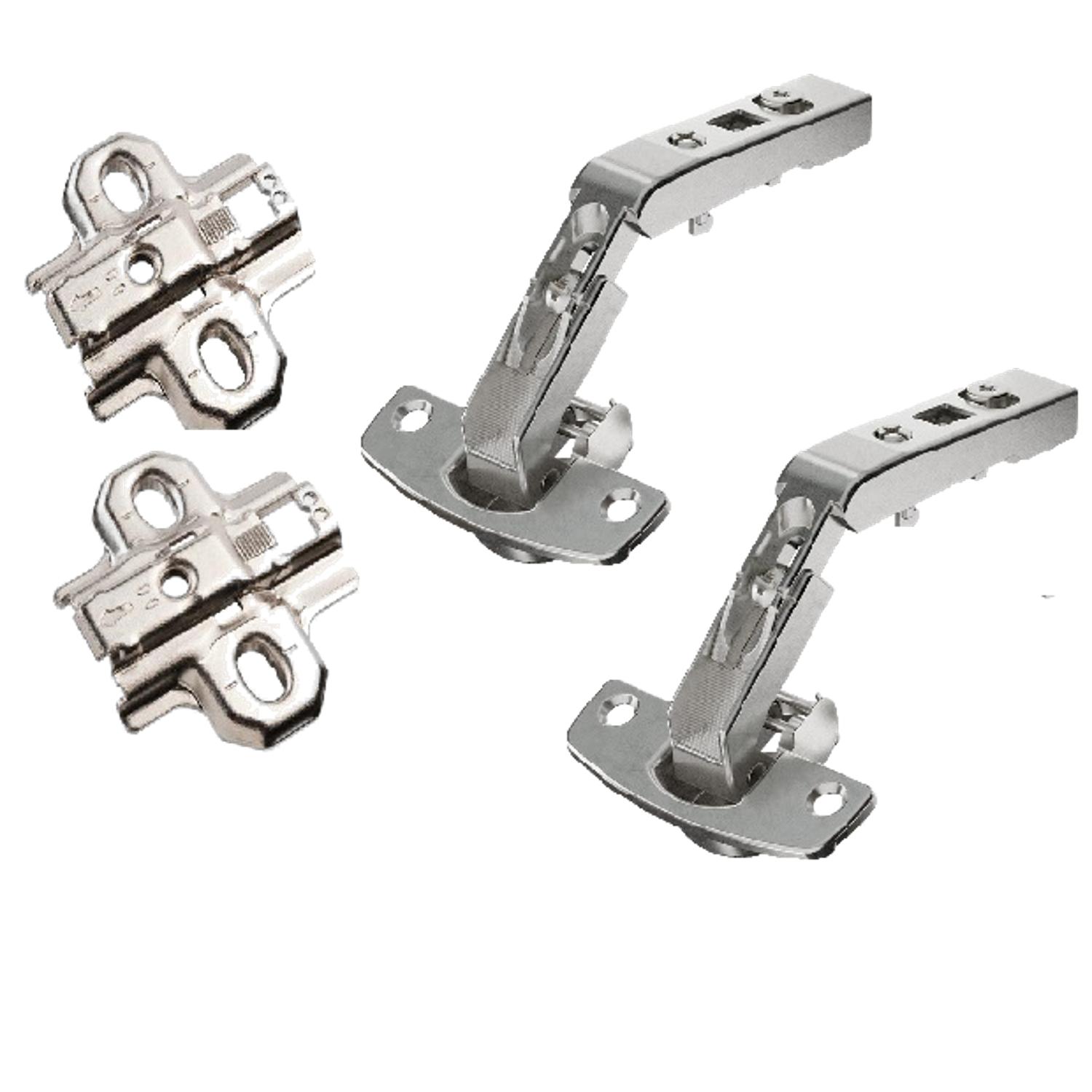

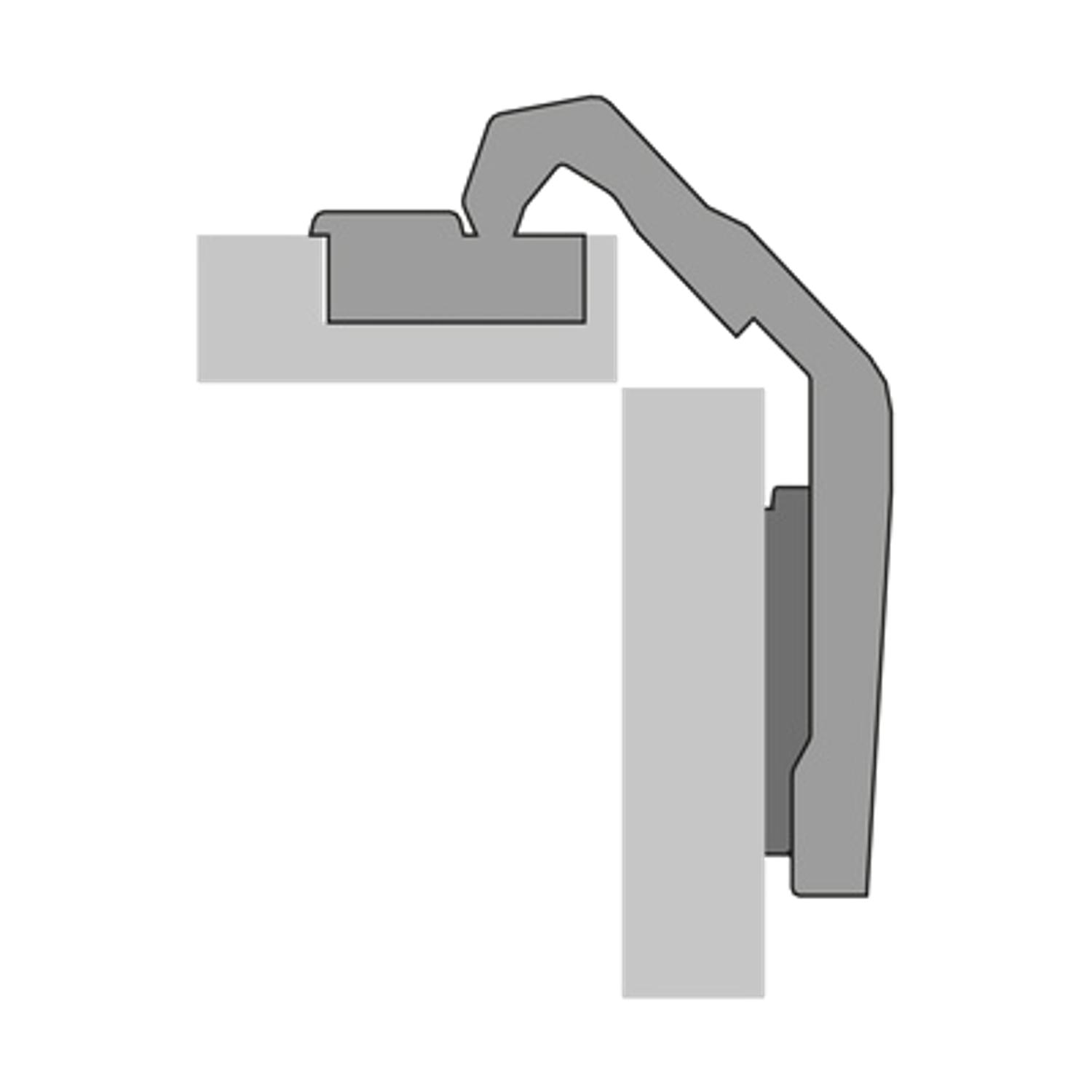

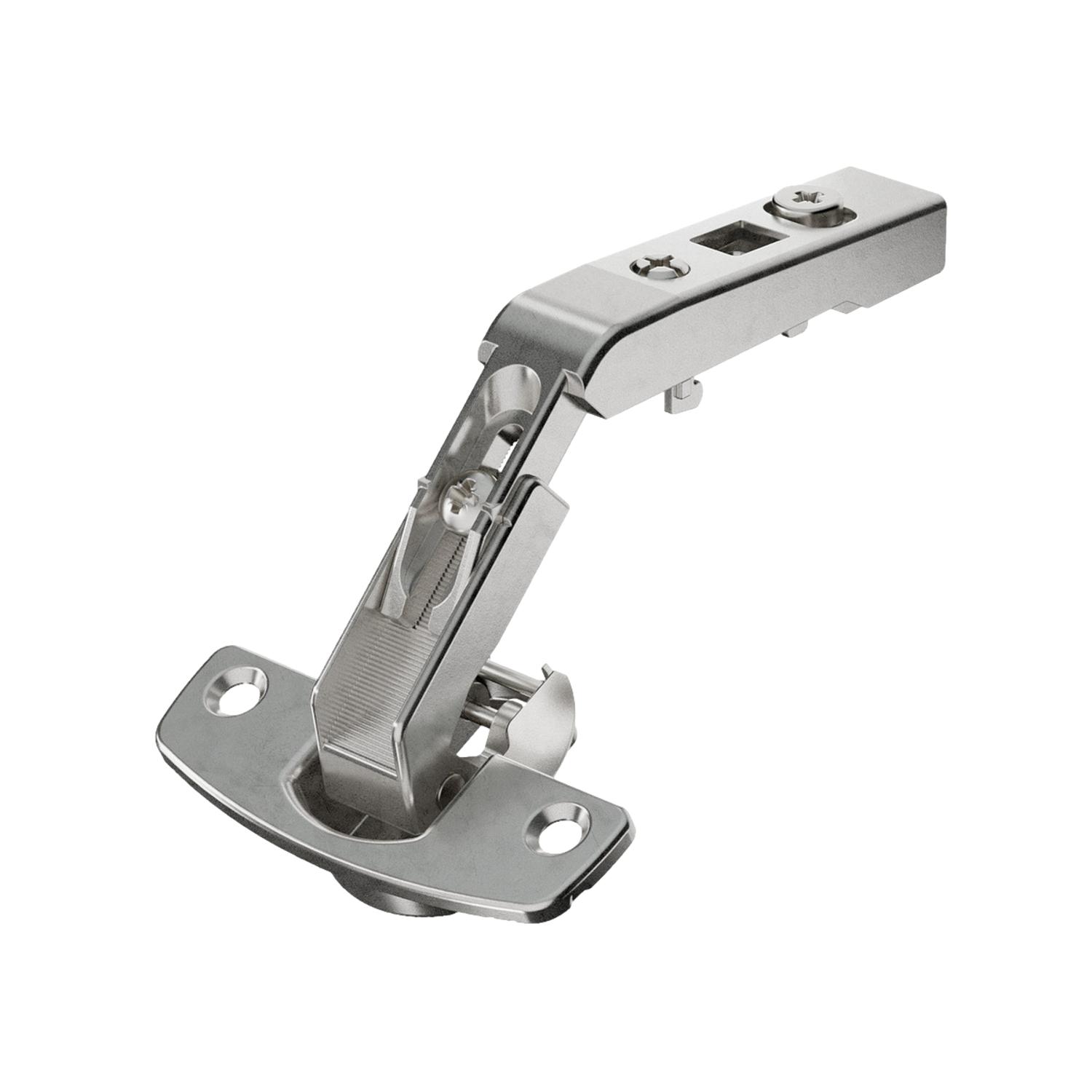

Intermat overlay hinges for corner cabinet folding doors with 50° / 65° opening angle. Pack of 2 hinges and mounting plates.

Please note these hinges following the TB45 drilling pattern with 45mm hole centres.

• Without self closing feature (Intermat 9930)
• For door thickness 15 - 21 mm

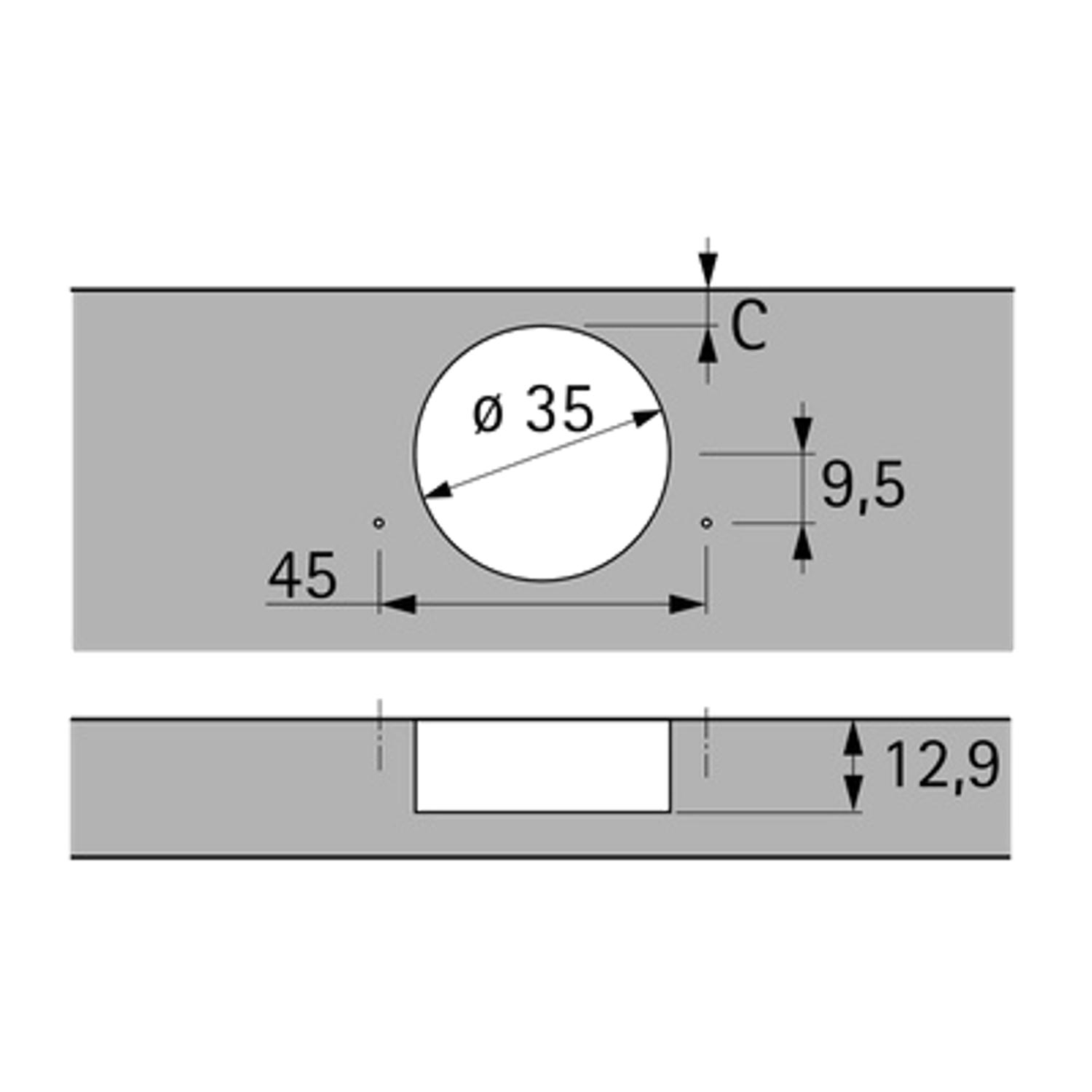

• Drilling pattern TB45 x 5,5 mm
• Cup depth 10.5 mm

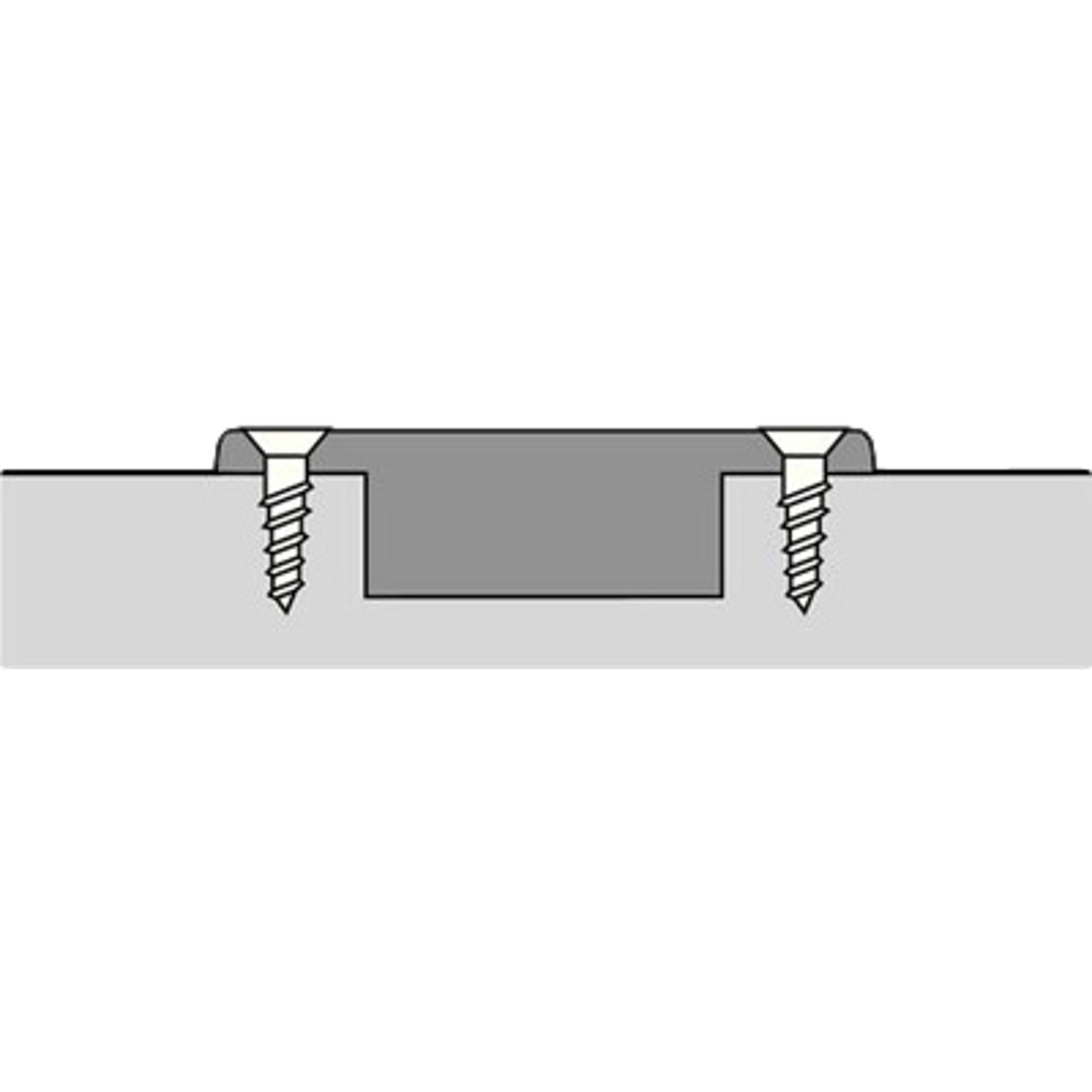

• Installation for screwing on
• Integrated diagonal adjustment +9.5 mm / -9.5 mm

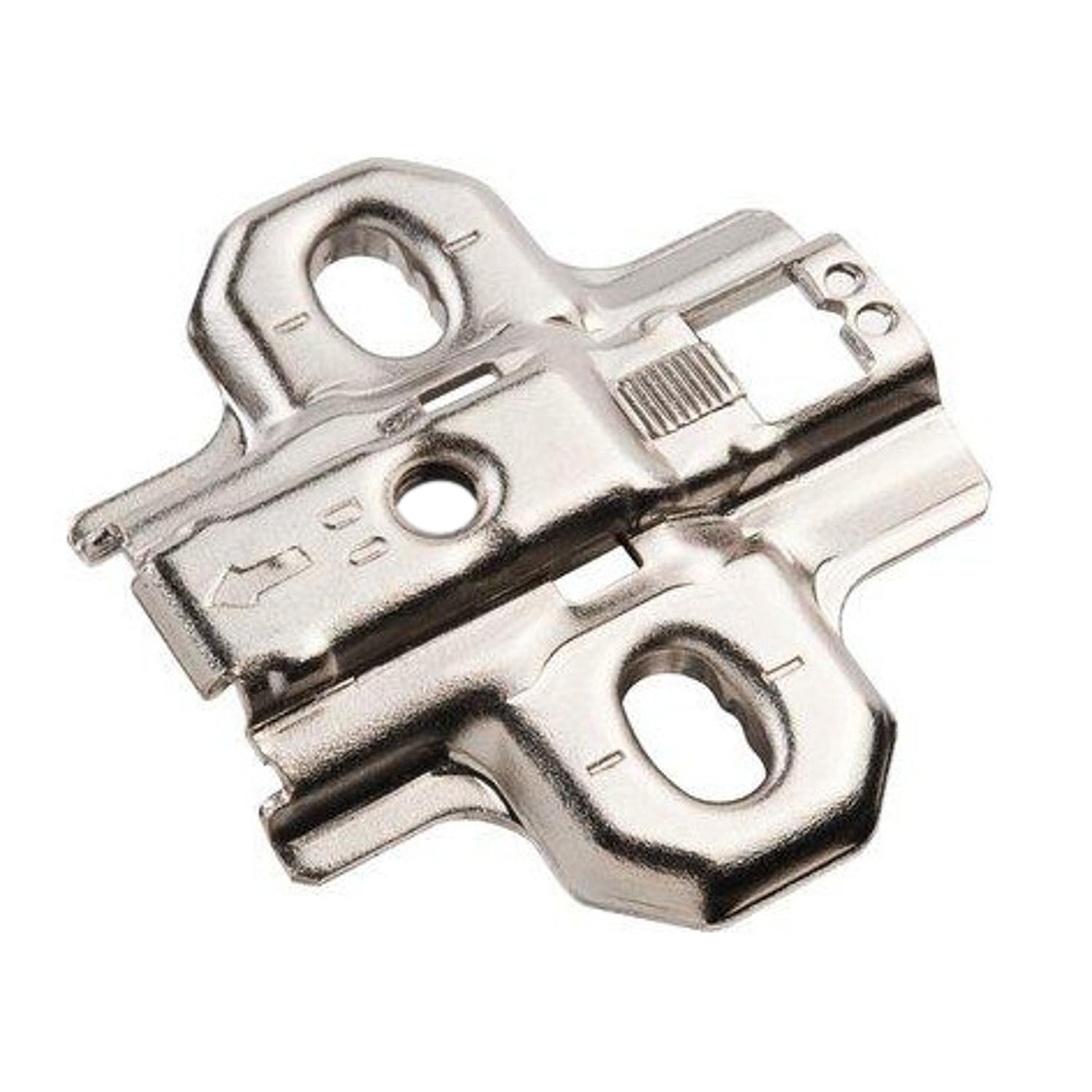

• Height adjustment at mounting plate
• steel / die-cast zinc nickel plated
• Pack of 2 hinges and mounting plates
