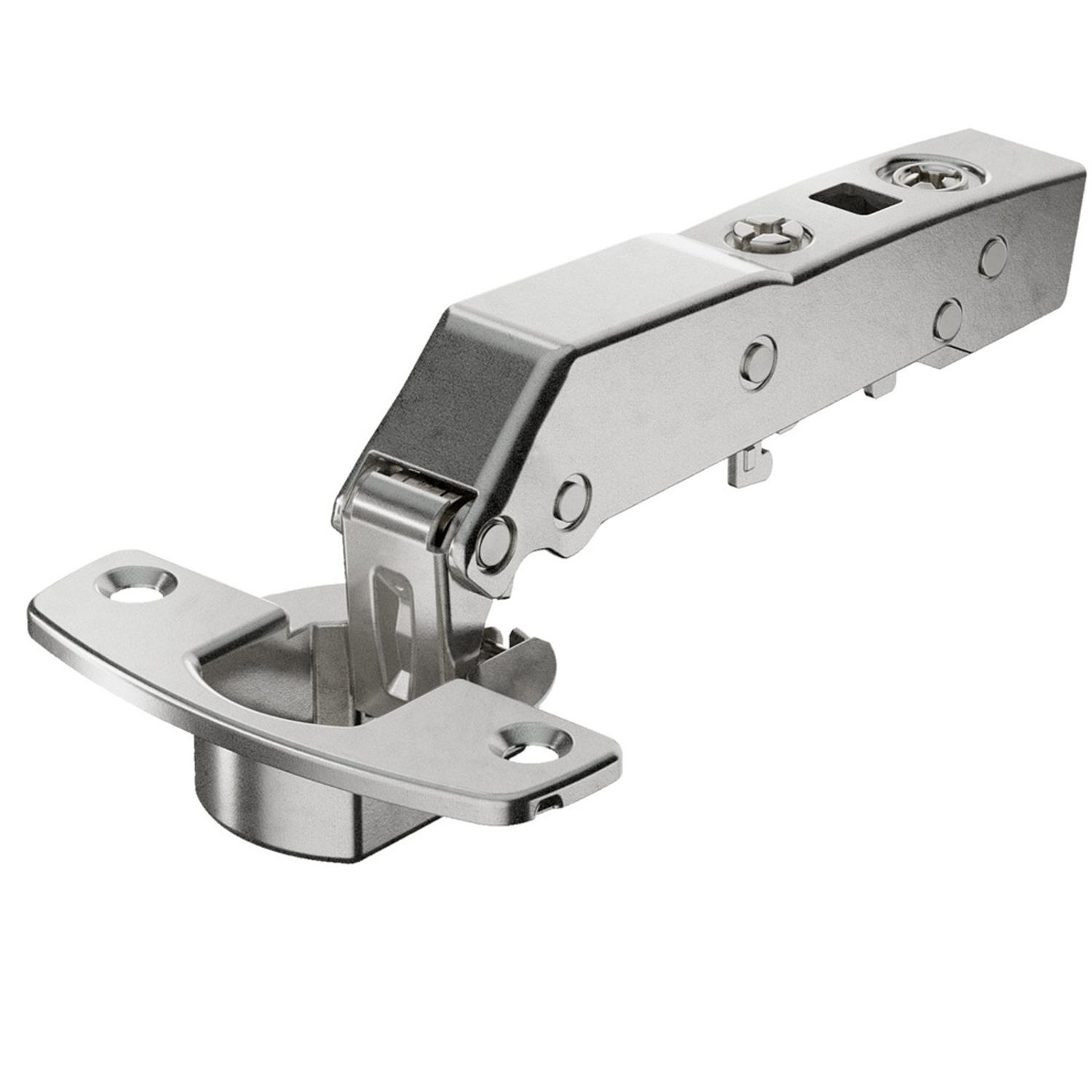

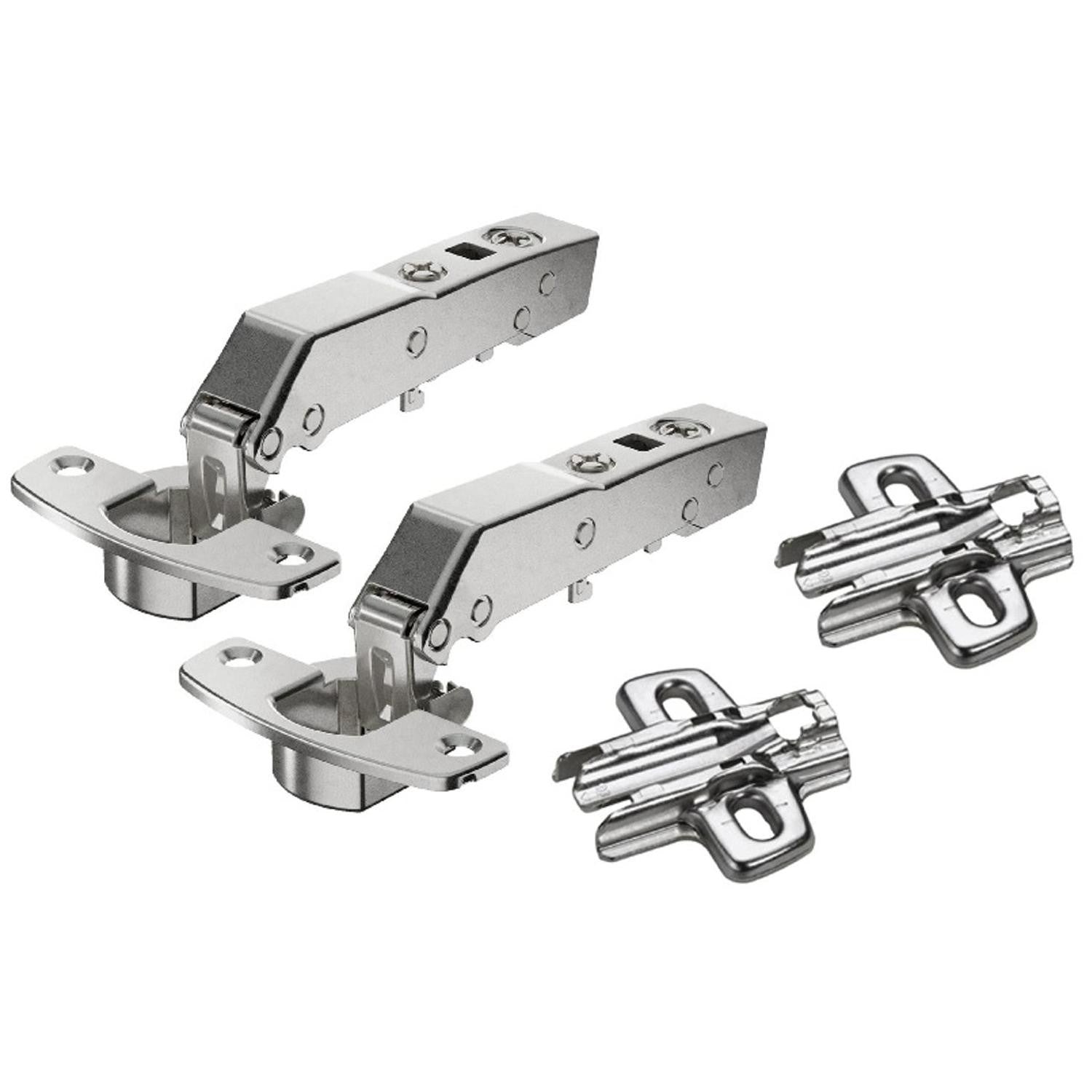

Hettich Sensys W45 8639i Corner Cabinet Hinges & Mounts (2 Pack)

Hettich Sensys angle hinges for 45 degree corner cabinets. Integrated soft close. Mounting plates included. Pack of 2.

W45 With integrated Silent System, with self closing feature (Sensys 8639i W45), part number 9088018
Opening angle 95°
For door thickness 15 - 28 mm

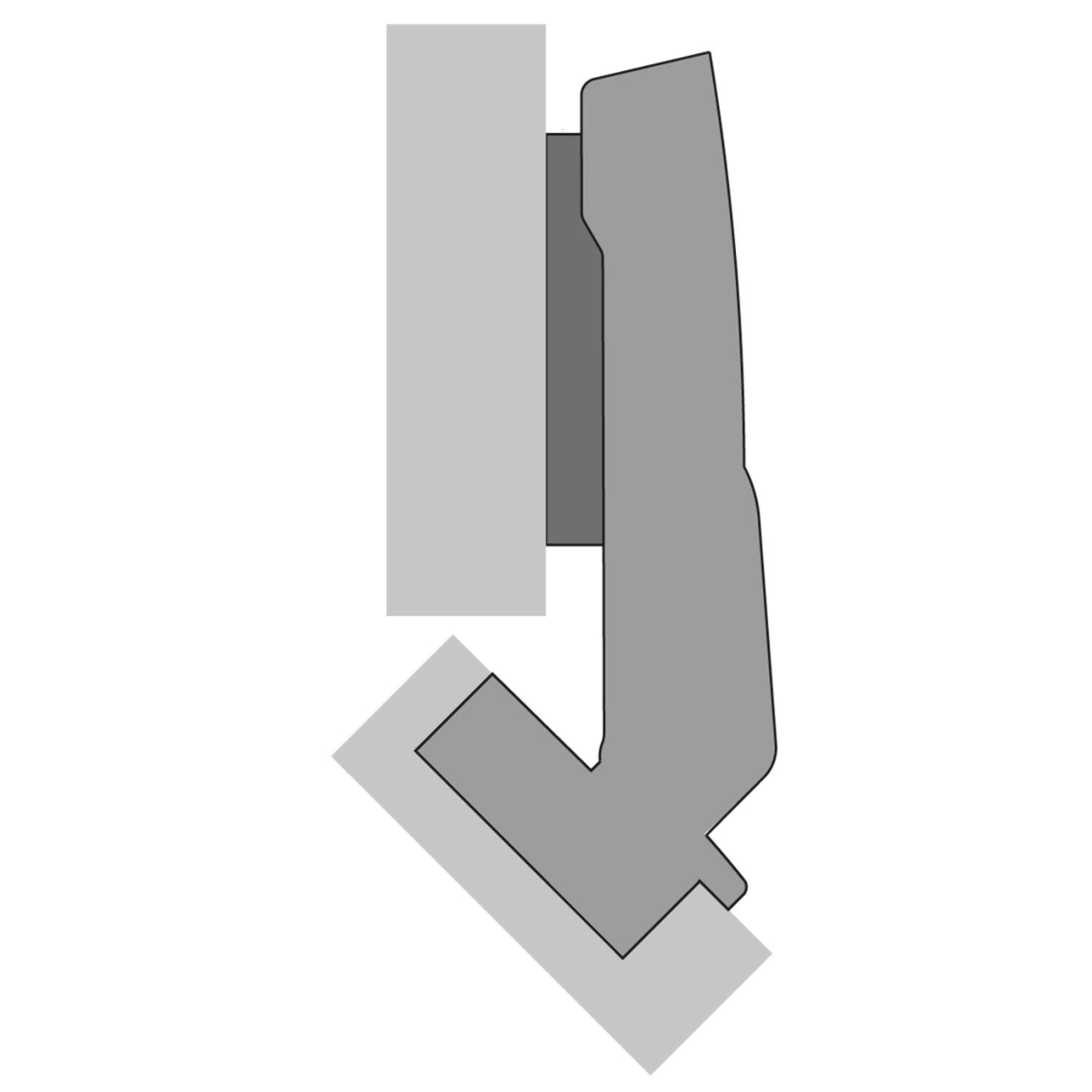

Door mounting option overlay (B 9 mm)

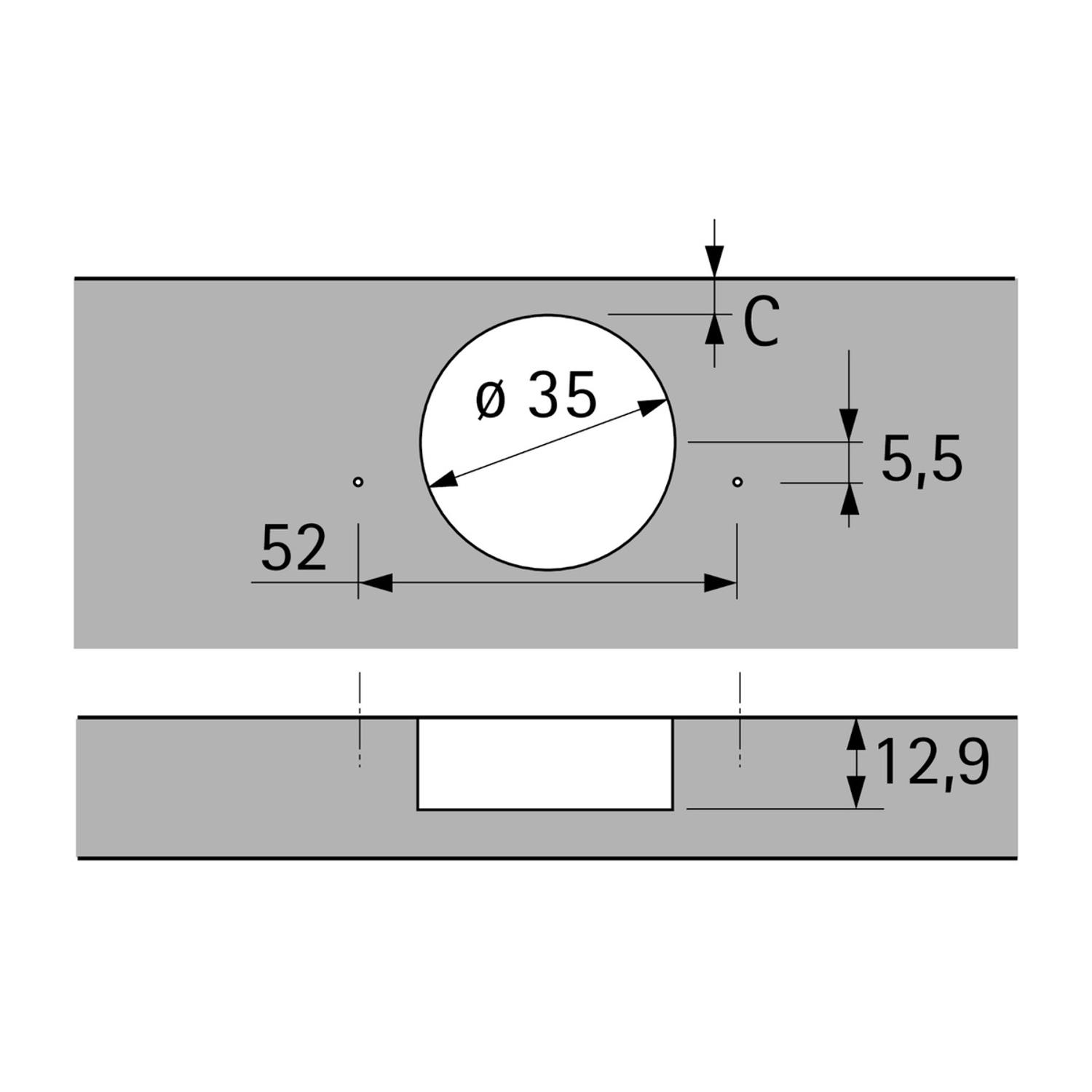

TH-drilling pattern 52 x 5.5 mm
Cup depth 12.8 mm
Installation for screwing on (TH 52)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm

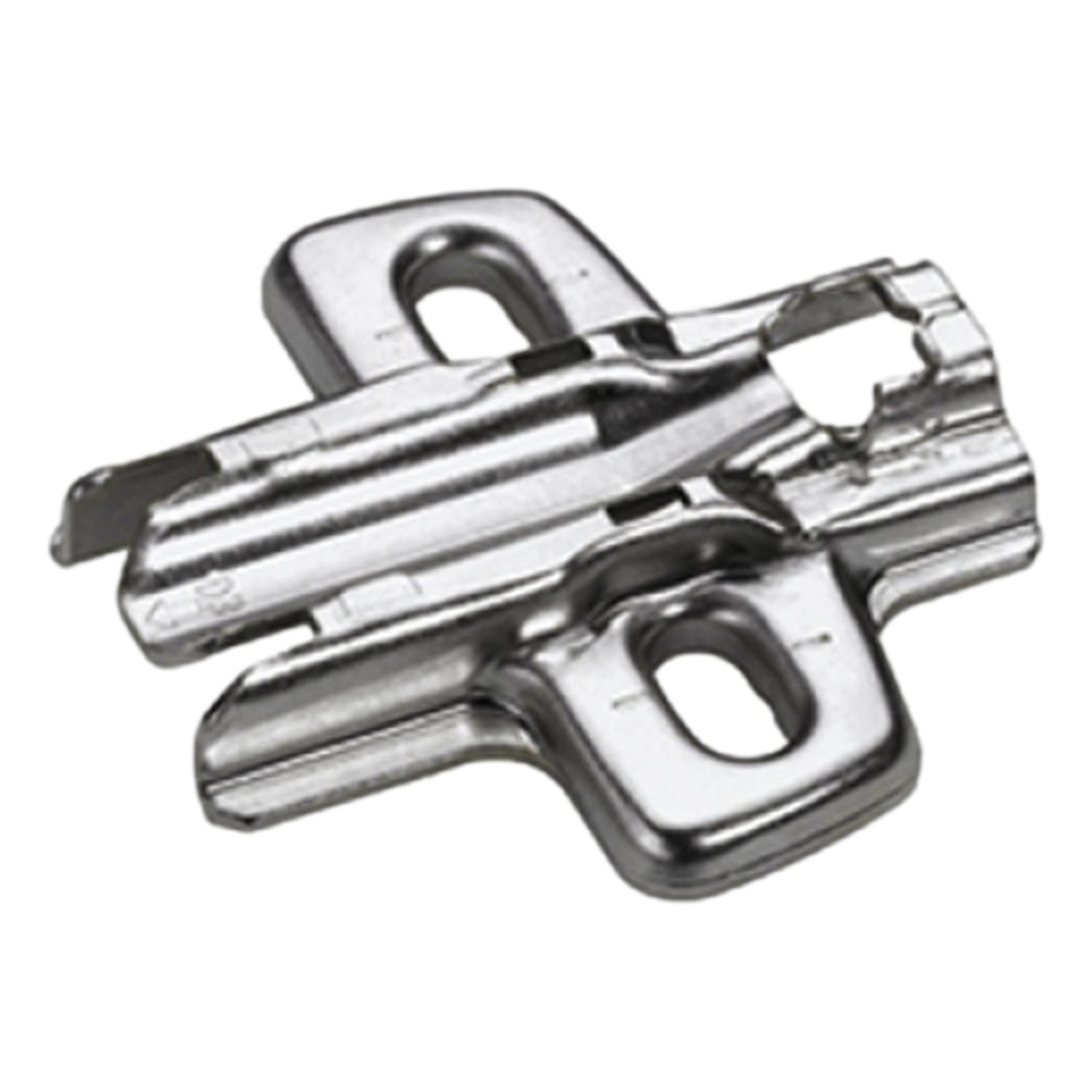

Height adjustment at mounting plate steel nickel plated
Pack of 2 hinges and mounts
