Optimat Concealed Hinge Front Frame Face Fix 110 Degree Hettich 4 Plus FM
$32.99
Sale price
$32.99
Regular price
$37.99
Skip to product information
Optimat Concealed Hinge Front Frame Face Fix 110 Degree Hettich 4 Plus FM
Optimat Concealed Hinge Front Frame Face Fix 110 Degree Hettich 4 Plus FM
$32.99
Sale price
$32.99
Regular price
$37.99
****USA Customers - Import Tariffs Are Included****
IGNORE ANY EBAY MESSAGE
Optimat Concealed Hinge Front Frame Face Fix 110 Degree Hettich 4 Plus FM

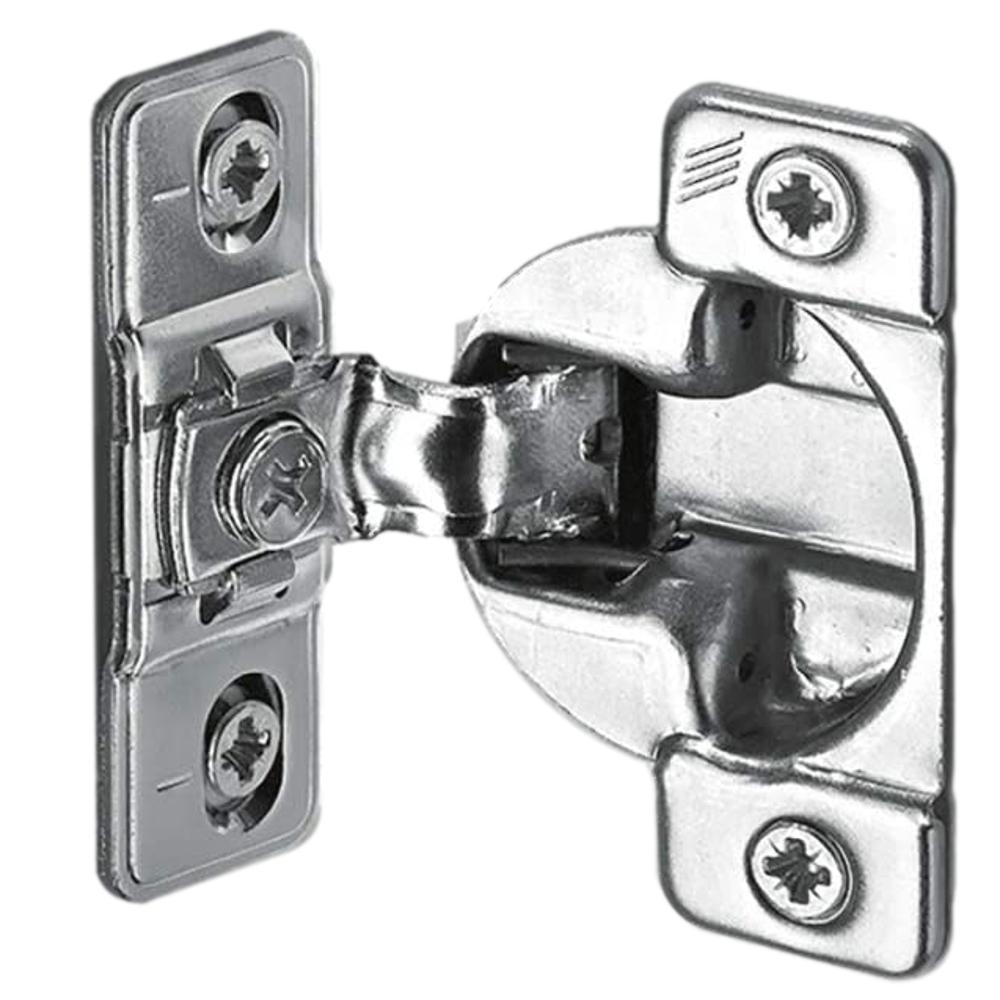

Hettich Optimat 4 Plus FM concealed front fix hinge. Price is for one hinge.
- Suitable for all frame widths
- Quality classification under EN 15570, Level 1
- For door thicknesses from 13 mm

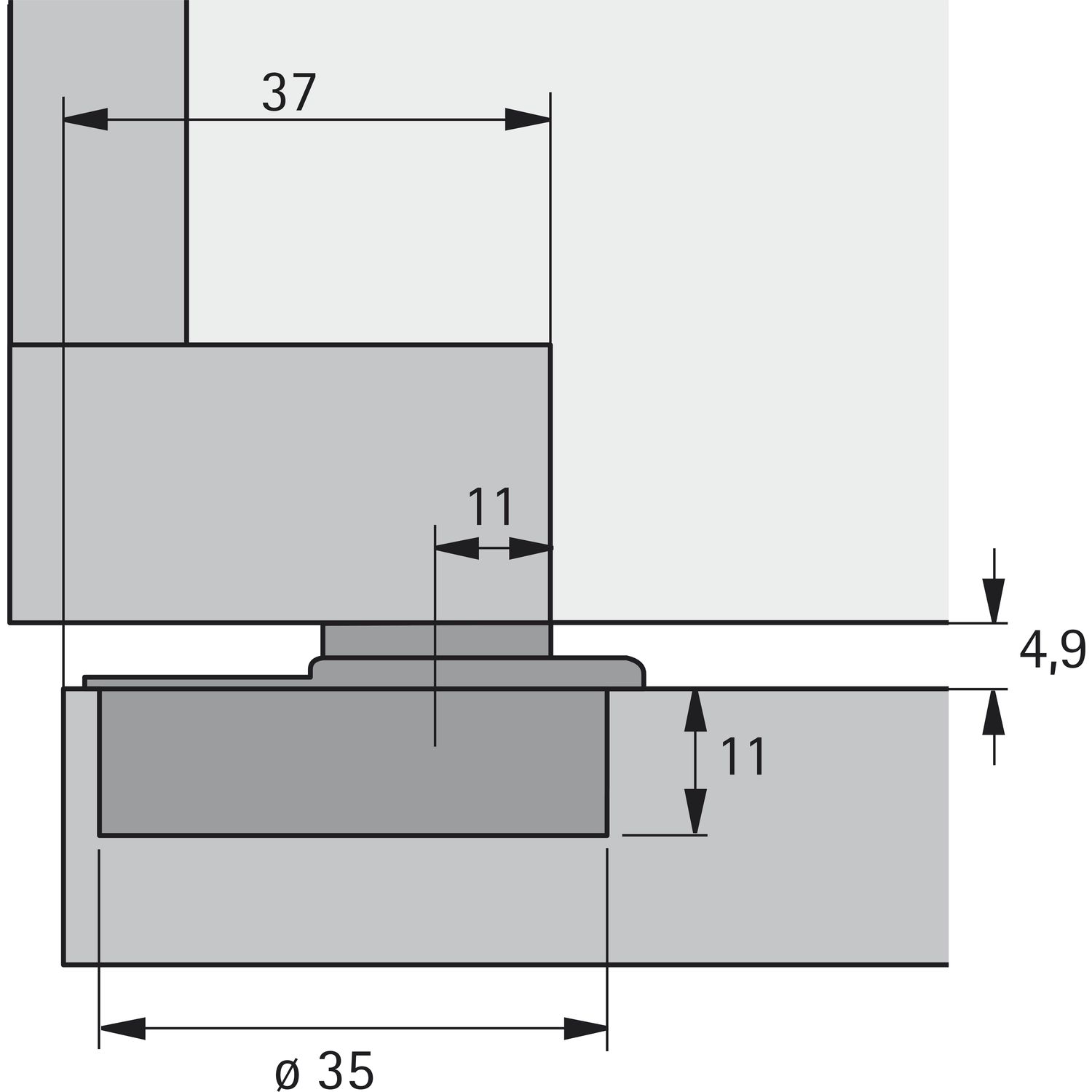

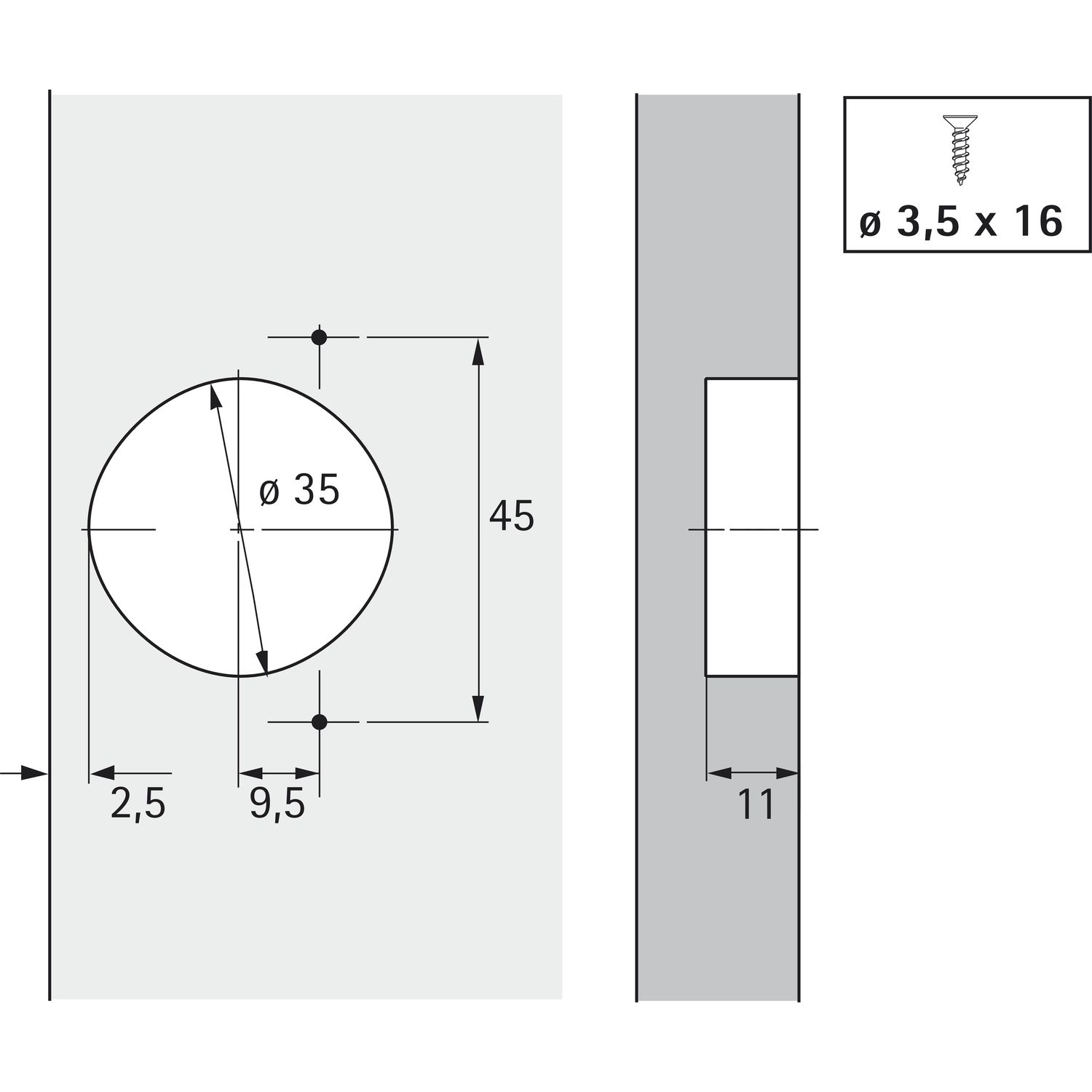

- Cup diameter 35 mm
- Cup depth 11 mm
- With self closing feature
- Door overlay at least 37 mm (hinge arm flush with the edge of the frame)
- Cup distance 2.5 mm
- Overlay adjustment + 1.5 mm / - 1.5 mm
- Height adjustment + 2 mm / - 2 mm
- Steel nickel plated
