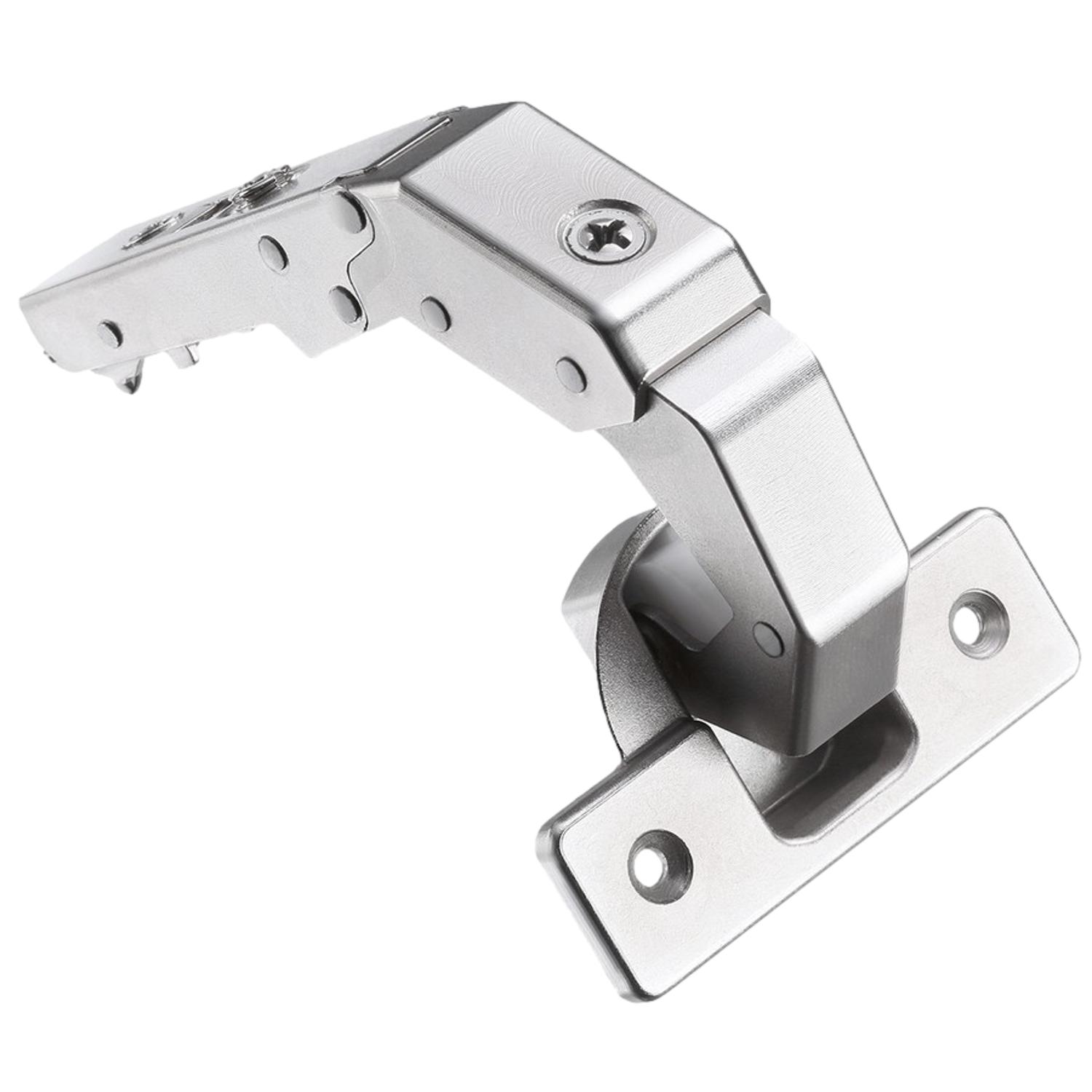

Titus T-Type 70° Bi-Fold Cabinet Hinge & Mounts (2 Pack)

Titus T-Type premium pie-cut clip on hinges for bi-fold corner door cabinet plus mounting plates.

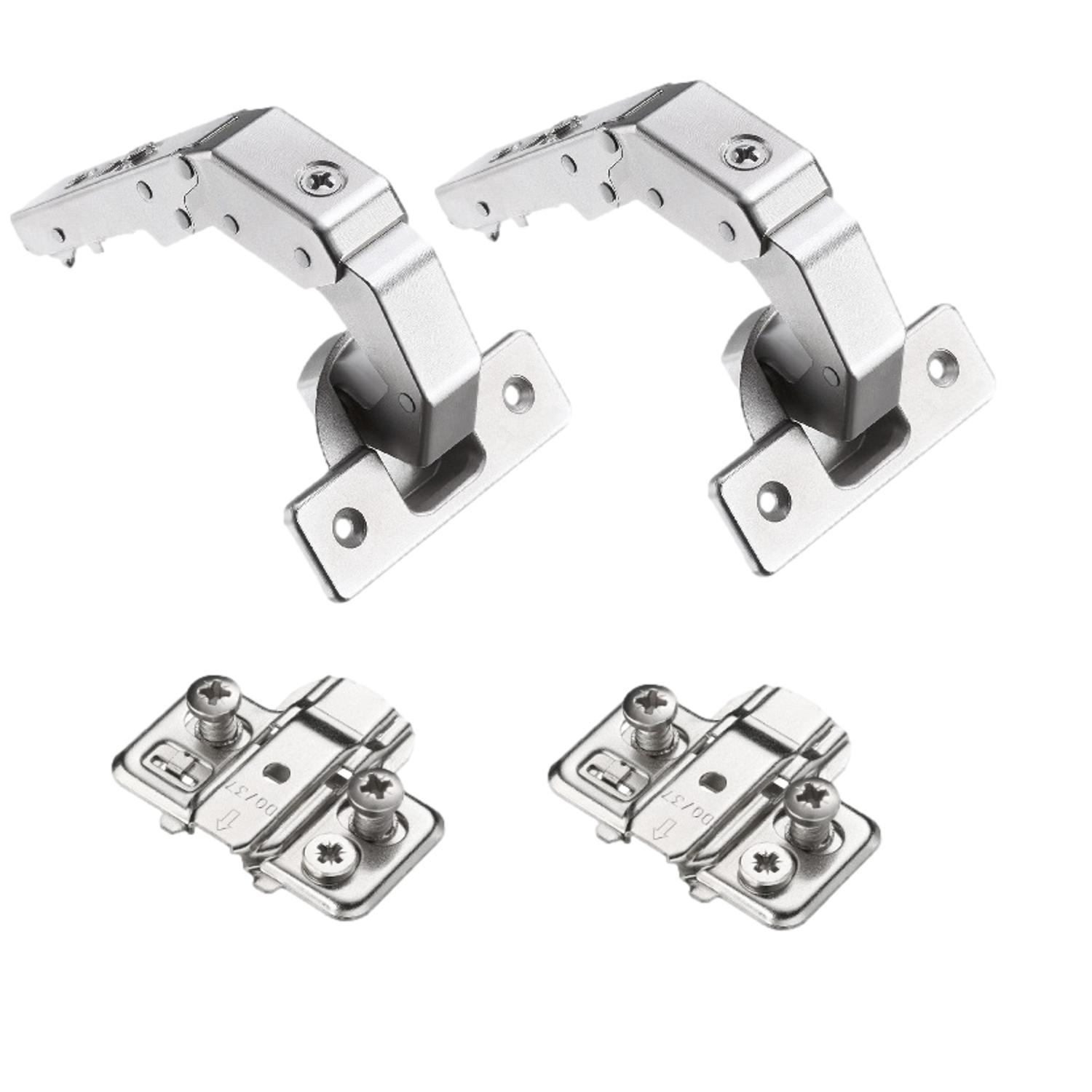

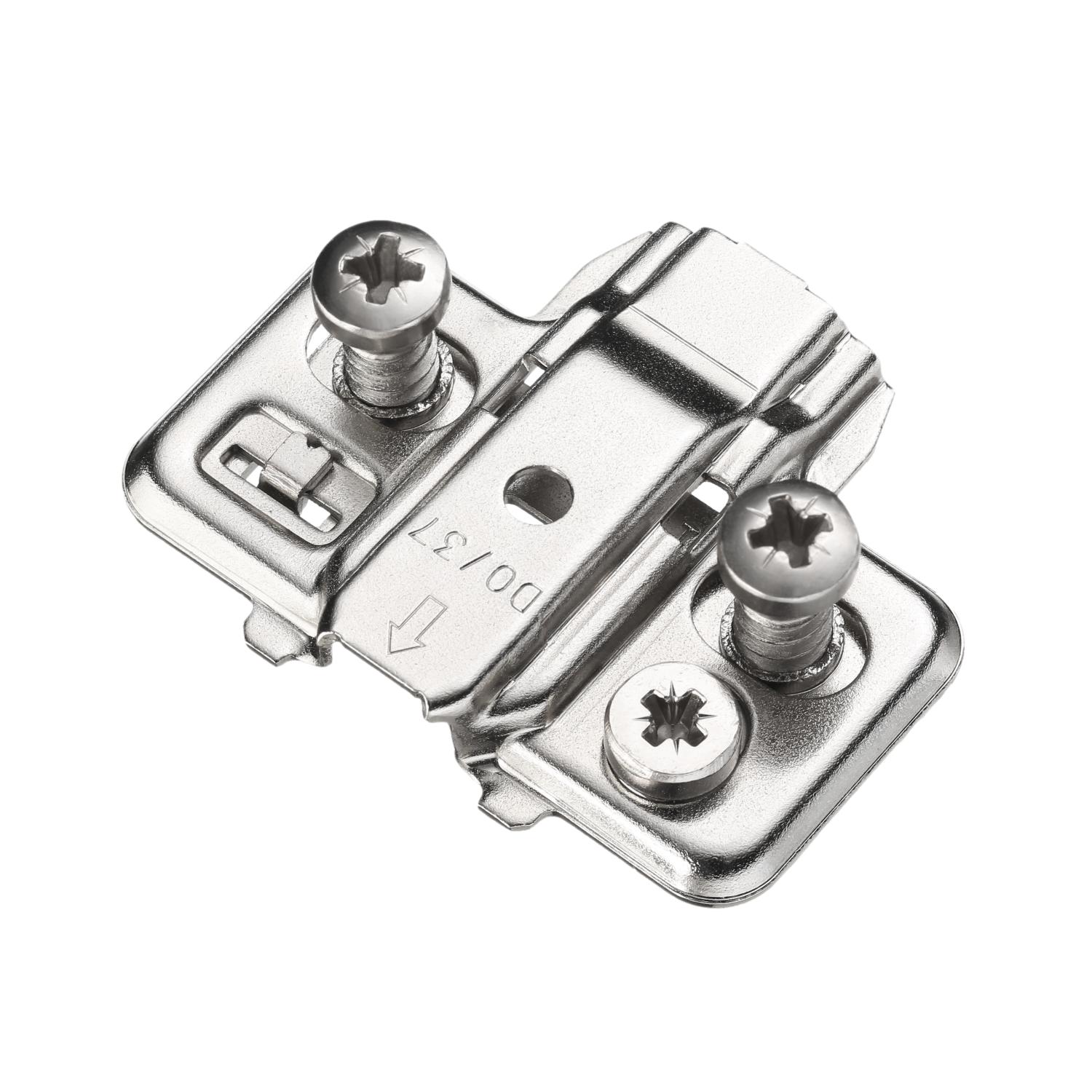

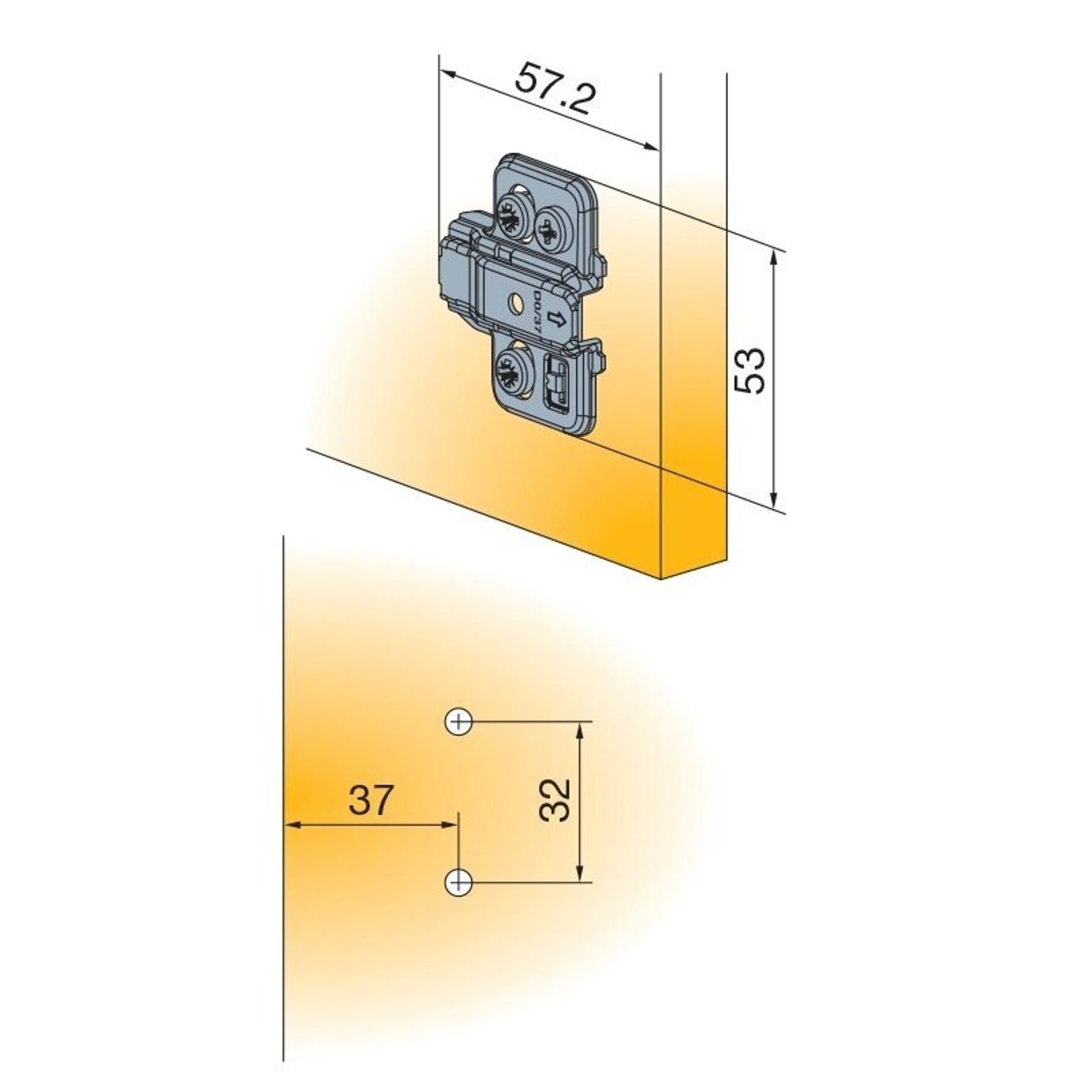

Pack of 2 hinges and mounting plates (Hinge model 721-0PK0-650 & Mounting plate 7010-0KC0-054)

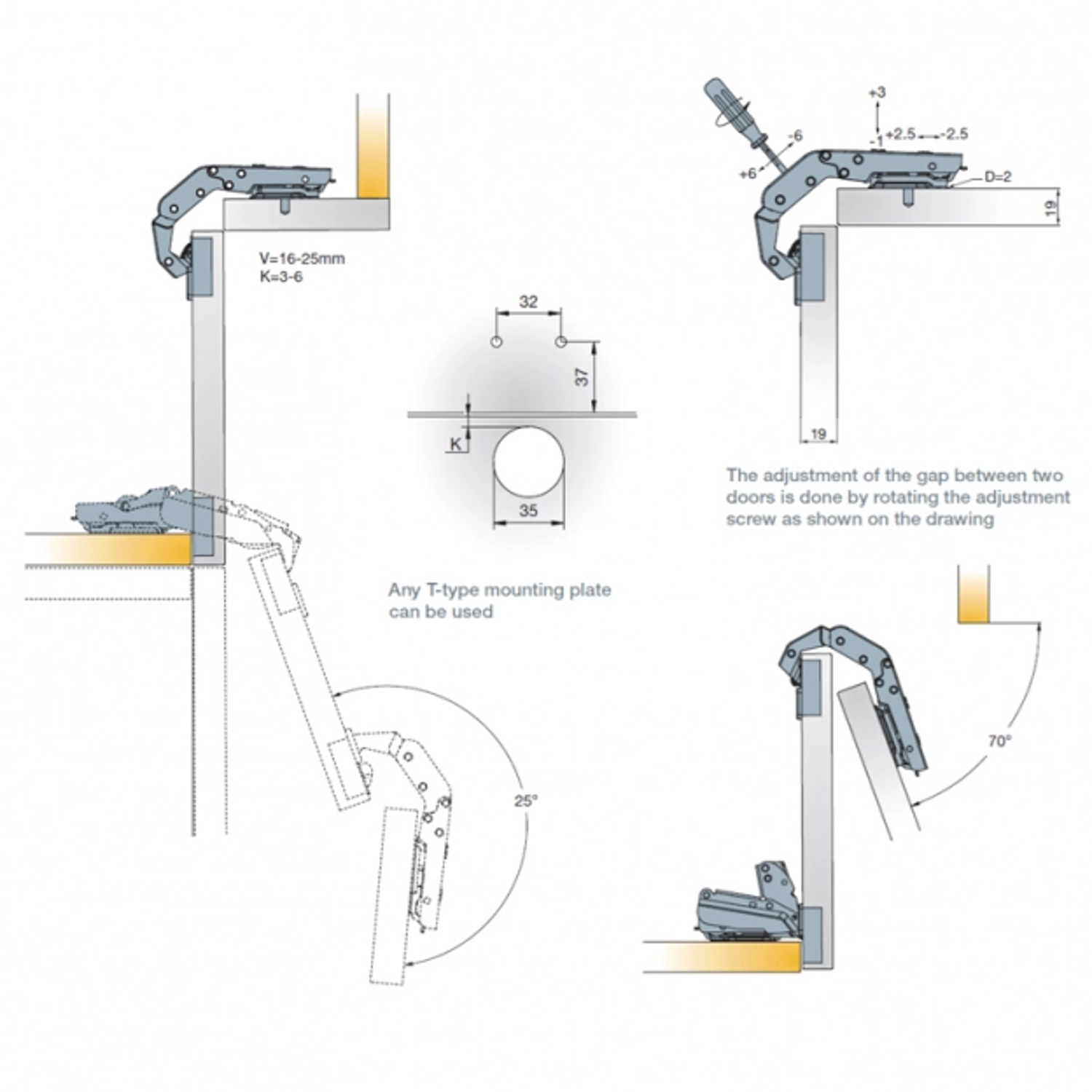

Opening Angle: 70°
Drilling diameter for hinge cup: 35mm
Drilling depth: 11.7mm
Hinge on plate mounting system: '3Way' snap-on
Side Adjustment: +3/-1mm
Height Adjustment: +2/-2mm
Depth Adjustment: +4/-1mm
Euro screws included with mounting plate. No other screws included.
