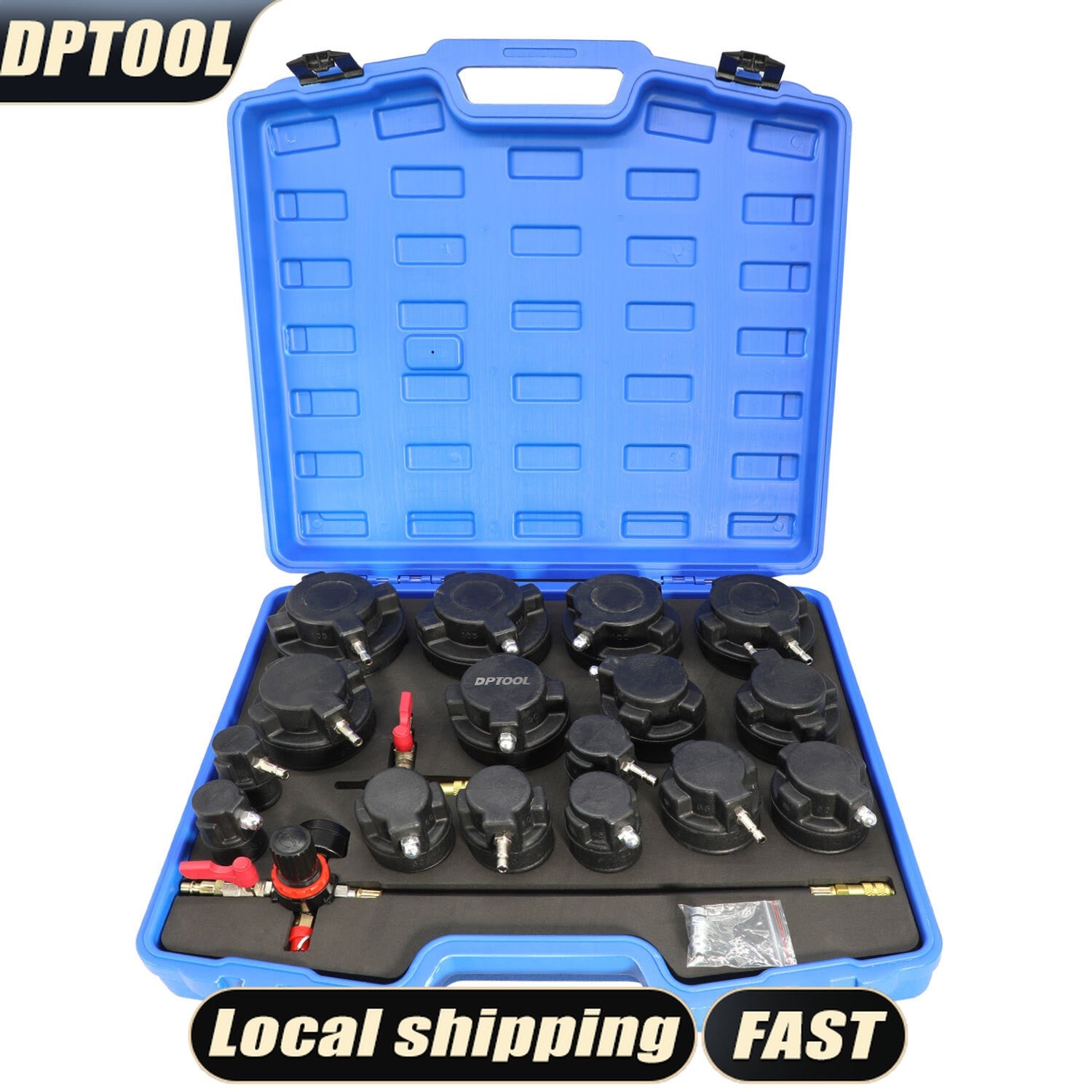

Turbo System Leakage Tester Kit
- This turbo boost leak tester identifies any leaks within the turbo system using standard workshop air
- Designed for turbo systems, but can also be used for radiators, coolers, tube/pipe assemblies
- Fit most turbo systems on cars and light commercial vehicles, but also suitable for hoses on a small number of heavy commercial vehicles
- This turbo boost test kit is used for cars, LCV, HGV & marine systems
- Tips: Please check if the set and stepped adapters are suitable for your vehicle model
A Complete Set
- This turbo system leakage tester kit include 16 stepped adaptors, pressure guage tester and smoke adapter.
- 16 Stepped Adaptors, include:
- 31-38mm plugged adapter and air fitting adapter, size: 1-1/4''-1-1/2''
- 46-51mm plugged adapter and air fitting adapter, size: 1-7/8''-2''
- 55-60mm plugged adapter and air fitting adapter, size: 2-1/8''-2-3/8''
- 65-70mm plugged adapter and air fitting adapter, size: 2-1/2''-2-3/4''
- 75-80mm plugged adapter and air fitting adapter, size: 3''-3-1/8''
- 85-90mm plugged adapter and air fitting adapter, size: 3-3/8''-3-1/2''
- 95-100mm plugged adapter and air fitting adapter, size: 3-3/4''-4''
- 105-110mm plugged adapter and air fitting adapter, size: 4-1/8''-4-1/4''
16 Stepped Adapters
This adapters contains 2 sets of plugs
- One set has quick connect fittings for the gauge hose,
- The other set is for plugging the other end of the system
Pressure Guage Tester
- Pressure Guage: 0-6 bar(0-87 psi)
- Designed for precise measurement the pressure inside the hose
- with pressure regulator, press down it means lock, when you need adjust pressure, you need pull up it and rotate
- with a red manual valve to control air pressure on and off; you can pull the red excess pressure release valve to reduce air pressure if over pressurisation
- Pressure gauge with shut off valve & regulator to help prevent over pressurisation
Smoke Adapters
- Used for connecting smoke machines to help locate air leaks in the components
- It also comes with a EU standard connector adapter, so that you have more choices
How to Use
- Unhook turbo out line at turbo or air to air connection.
- Unhook hose at air to air outlet or intake.
- Select correct size adapters and place in hoses (Fig). Tighten clamp, making sure it is behind the ridge on the adapter.
- Turn regulator pressure all the way down. Pull cap out and turn counterclockwise.
- Plug air supply line into adapter fitting, making sure the air valve is closed. (Red lever at 90° to input)
- Open air valve and adjust regulator to recommended PSI, typically 20-25 PSI . Close air valve. If pressure drops, a spray bottle with water can be used to locate the leak.
- Remove air hose and open air valve to release pressure.
- Remove regulator from adapter.
- Remove adapters and reconnect turbo lines.
