Turbo System Leakage Tester Kit Turbo Boost Leak | Built Supply Co

This turbo boost leak tester identifies any leaks within the turbo system using standard workshop air Designed for turbo systems, but can also be used for radiators, coolers, tube/pipe assemblies Fit most turbo systems on cars and light commercial vehicles, but also suitable for hoses on a small number of heavy commercial vehicles This turbo boost test kit is used for cars, LCV, HGV & marine systems Tips: Please check if the set and stepped adapters are suitable for your vehicle model

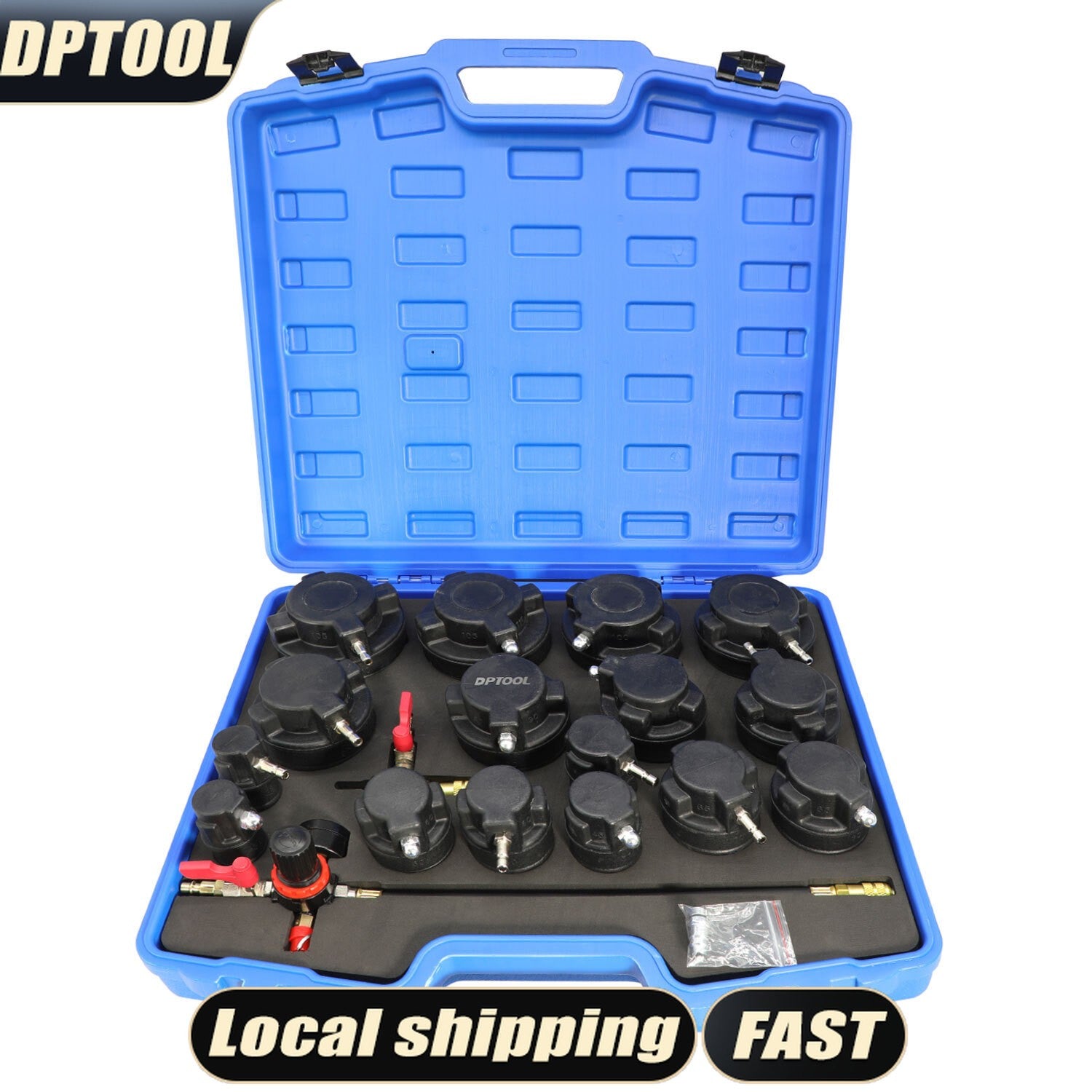

A Complete Set

• This turbo system leakage tester kit include 16 stepped adaptors, pressure guage tester and smoke adapter .
• 16 Stepped Adaptors, include:
• 31-38mm plugged adapter and air fitting adapter, size: 1-1/4''-1-1/2''
• 46-51mm plugged adapter and air fitting adapter, size: 1-7/8''-2''
• 55-60mm plugged adapter and air fitting adapter, size: 2-1/8''-2-3/8''
• 65-70mm plugged adapter and air fitting adapter, size: 2-1/2''-2-3/4''
• 75-80mm plugged adapter and air fitting adapter, size: 3''-3-1/8''
• 85-90mm plugged adapter and air fitting adapter, size: 3-3/8''-3-1/2''
• 95-100mm plugged adapter and air fitting adapter, size: 3-3/4''-4''
• 105-110mm plugged adapter and air fitting adapter, size: 4-1/8''-4-1/4''

16 Stepped Adapters

• One set has quick connect fittings for the gauge hose,
• The other set is for plugging the other end of the system

Pressure Guage Tester

• Pressure Guage: 0-6 bar(0-87 psi)
• Designed for precise measurement the pressure inside the hose
• with pressure regulator, press down it means lock, when you need adjust pressure, you need pull up it and rotate
• with a red manual valve to control air pressure on and off; you can pull the red excess pressure release valve to reduce air pressure if over pressurisation
• Pressure gauge with shut off valve & regulator to help prevent over pressurisation

Smoke Adapters

• Used for connecting smoke machines to help locate air leaks in the components
• It also comes with a EU standard connector adapter, so that you have more choices

How to Use

• Unhook turbo out line at turbo or air to air connection.
• Unhook hose at air to air outlet or intake.
• Select correct size adapters and place in hoses (Fig). Tighten clamp, making sure it is behind the ridge on the adapter.
• Turn regulator pressure all the way down. Pull cap out and turn counterclockwise.
• Plug air supply line into adapter fitting, making sure the air valve is closed. (Red lever at 90° to input)
• Open air valve and adjust regulator to recommended PSI, typically 20-25 PSI . Close air valve. If pressure drops, a spray bottle with water can be used to locate the leak.
• Remove air hose and open air valve to release pressure.
• Remove regulator from adapter.
• Remove adapters and reconnect turbo lines.

Available from Built Supply Co — New Zealand.
